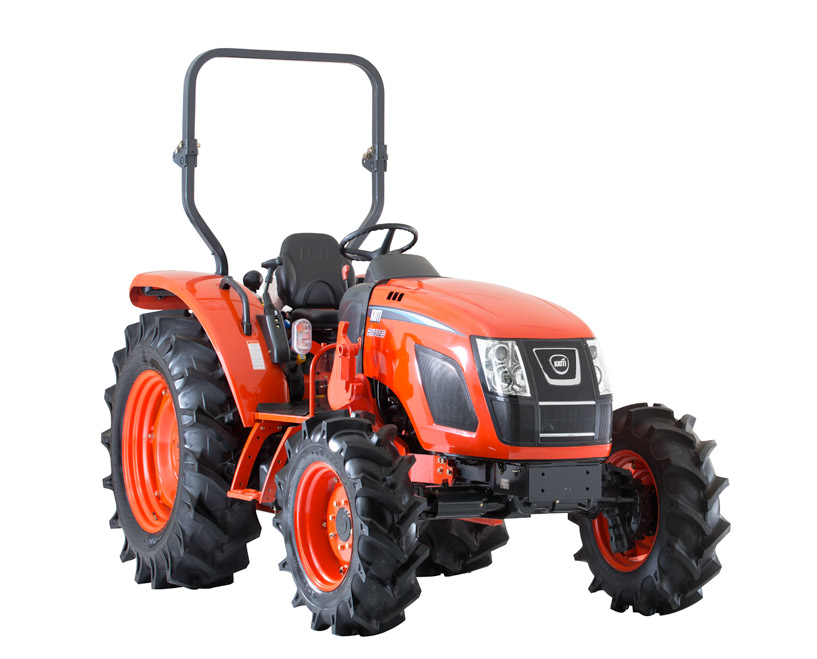

RX8030 ROPS
The new streamlined hood which improves visibility. The 60 degree hood opening angle without any side covers enables convenient access for easy maintenance. Other improvements include larger tyres, 50% more lift capacity, higher road speed, increased fuel capacity and higher hydraulic flow. The RX8030 is a versatile work-horse that will suit a variety of applications, and is compact enough to do the smaller jobs around the farm.
Standard Features:
- 80 hp Diesel Engine
- Power Forward / Reverse Shuttle
- 24x24 Transmission
- 4WD with Diff Lock
- Power Steering
- Auto Hydraulic Independent PTO
- Comfort Clutch (DeClutch)
Engine

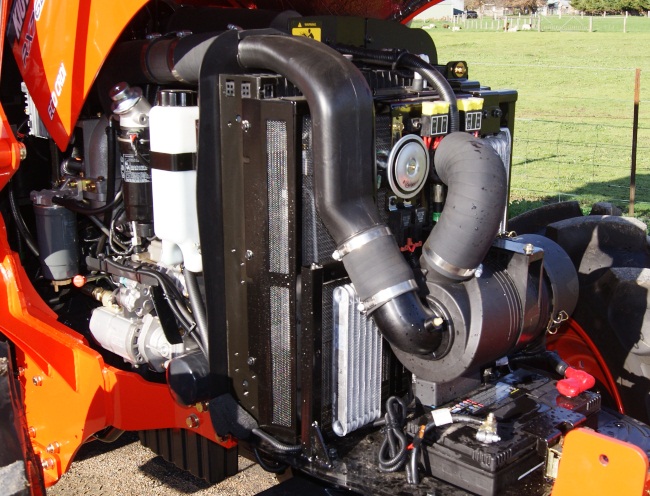

Powerful, environmentally friendly, turbo charged, 80 hp CRDI Daedong diesel engine offers high output, low noise, low vibration and lower fuel consumption compared to competitors.
Transmission

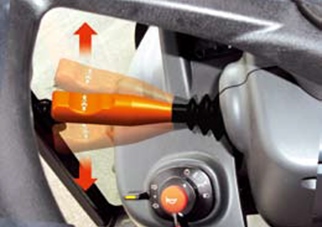

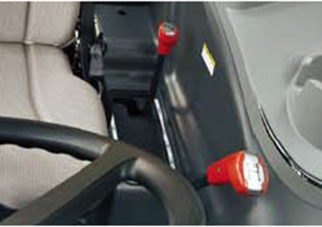

The new PowerShuttle on the RX8030 provides smooth and easy shifting from forward to reverse without depressing the clutch pedal. The transmission features 24 forward and 24 reverse gears to handle all kinds of jobs. The RX8030 is perfect for long days working with a front end loader. Fully independent PTO with auto-stop function.
Operator Station

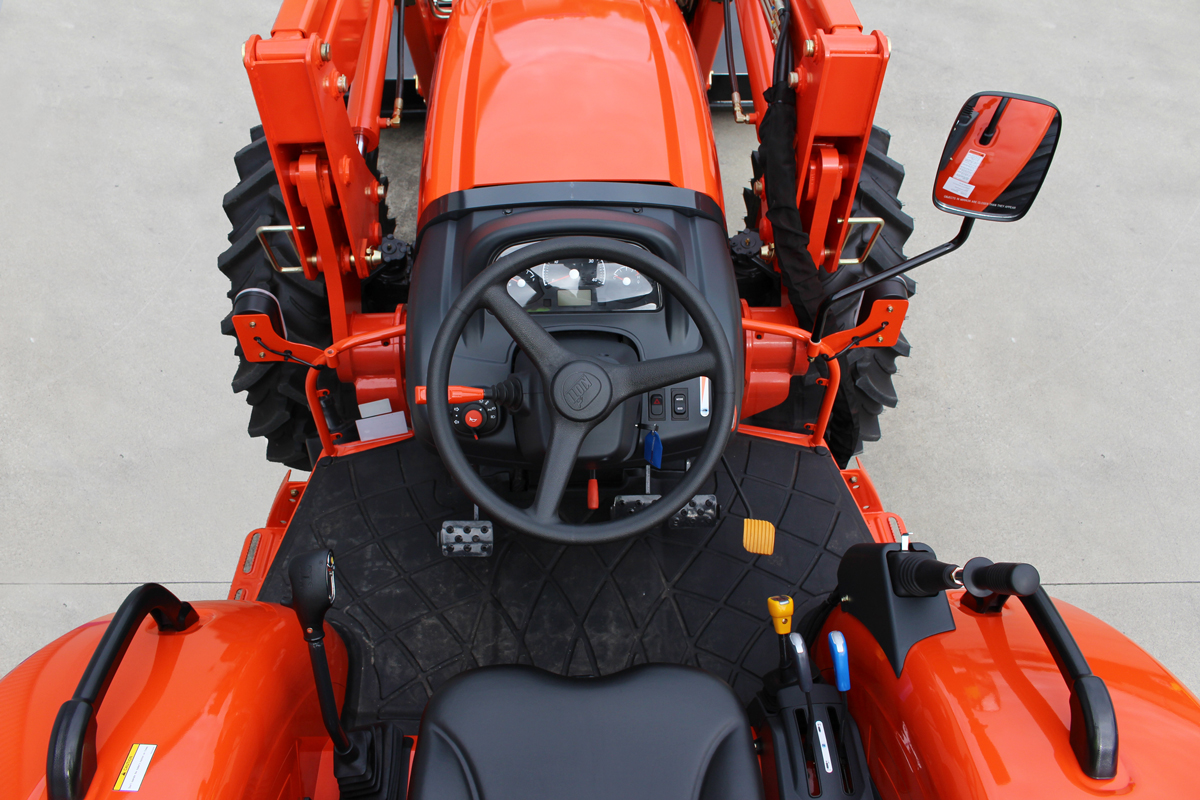

The full-featured instrument panel, adjustable seat, tilt steering wheel, power steering, grab handles, wide step-through deck, and convenient controls are designed for operator comfort and user-friendly operation.
Hydraulic System

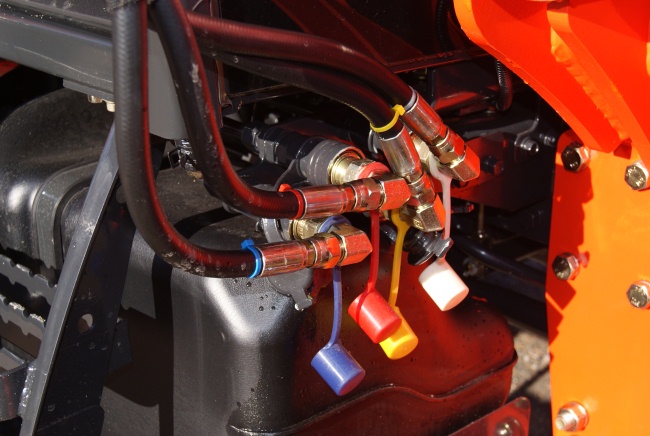

Standard dual remote hydraulic valves accommodate a wide variety of attachments and implements. A mid-mount double acting valve and a single lever joystick for loader operations are standard on the RX series. The RX series tractor has two external hydraulic lift cylinders with a lift capacity of 2,256 kg.
Specifications
|
ENGINE
|
BRAKES |
|
Daedong 4F243T-TPC3 CRDI |
Wet Disk |
|
Liquid Cooled 4 Cylinder Diesel Turbo |
|
|
2435cc Displacement |
OPERATOR ENVIRONMENT |
|
80 HP @ 2600 rpm (Max hp) |
High Quality Fully Adjustable Seat |
|
95 Litre fuel Tank Capacity |
with Arm Rests and Backrest |
|
Adjustable Steering Wheel and Instruments |
|
|
TRANSMISSION |
Flat Operator Deck |
|
Power Shuttle |
|
|
4 Main Gear x 6 Range Gear Shift |
|
|
24F X 24R Speed |
|
|
4 Wheel Drive with Wet Multi Disk Engagement |
|
|
HYDRAULICS & LINKAGE |
|
|
Implement Pump 41.6 lpm |
|
|
Power Steering Pump 31.2 lpm |
|
|
Total Hydraulic Flow 72.8 lpm |
TRAVEL SPEEDS |
|
Category 2 Three Point Linkage |
Forward 1.63 - 38.82kph |
|
Cassette Type Lower link |
Reverse 1.61 - 38.17kph |
|
2256kgs Maximum rear Lift Capacity |
|
|
Clevis Type Rear Draw Bar |
DIMENSIONS |
|
Standard 2 Pair Hydraulic rear remotes |
Overall Length inc 3PL 3480mm |
|
Hydraulic Power Steering |
Overall Width min tread 1960mm |
|
POWER TAKE OFF |
Overall Height (ROPS) 0000mm |
|
Independent |
Wheelbase 2130mm |
|
540 / 750 rpm |
Ground Clearance 440mm |
|
SAE 1-3/8, 6 Spline |
Weight ROPS/ AG 2530kg |
|
TYRES |
|
|
Radial Tyre Front 280/85R24 |
|
|
Rear 420/85R30 |
|
|
MODELS |
|
|
RX8030 ROPS |
|
|
OPTIONS |
|
|
KL705 Loader with 4 in 1 bucket |
Pallet Forks to fit KL1595 Loader |
|
Rear Counter Balance Weight Box 650kg |
Bale Forks to fit KL1595 Loader |
*This information is sourced from overseas therefore it might not apply locally. Please contact your nearest dealer to confirm specifications and other information.
