EX Series



The EX Series

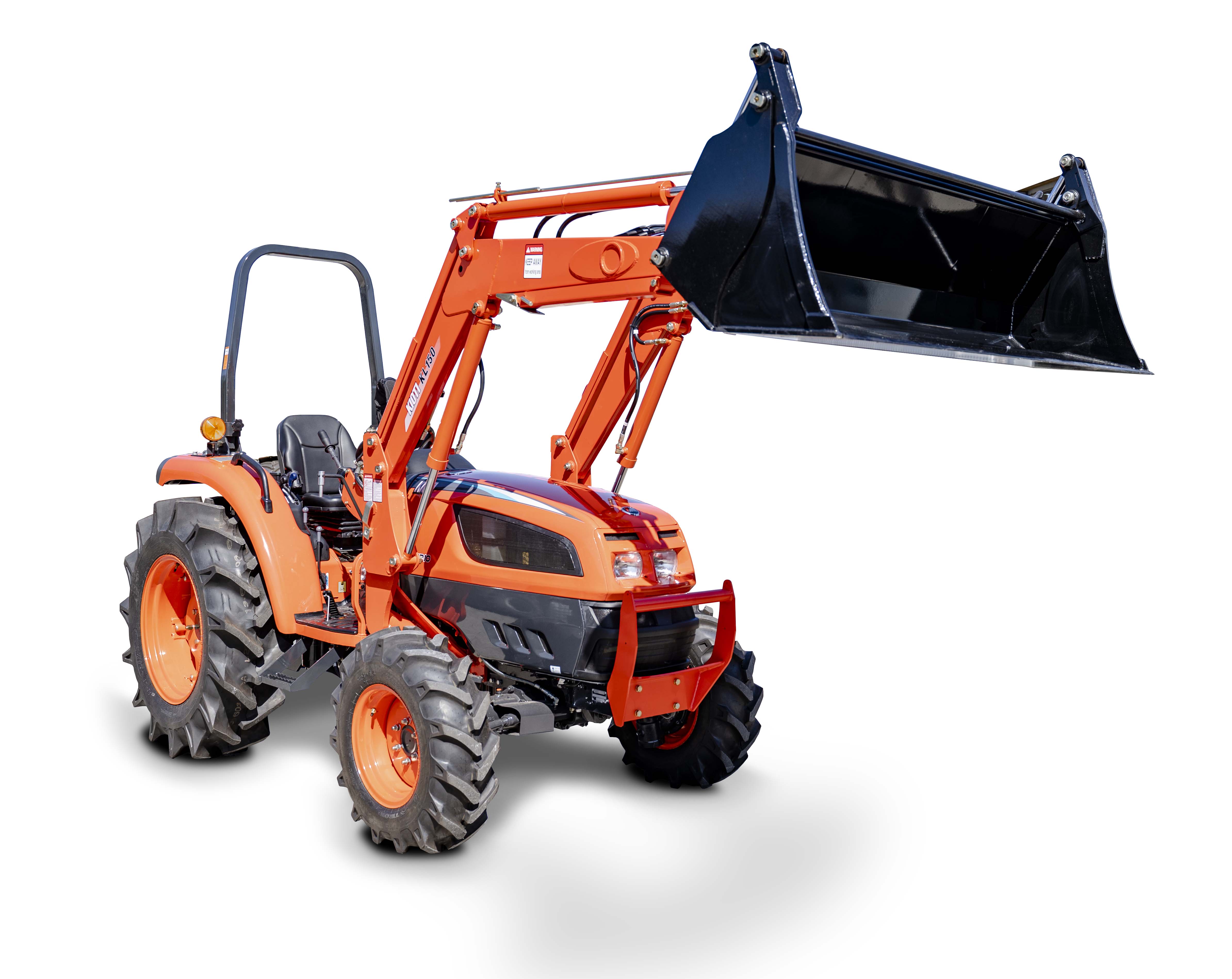

Kioti EX Series. EXtra power, EXtra standard features, EXtra comfort

The measure that makes a tractor a true asset is the boost it gives to your productivity. It has to deliver enough power and versatility for a wide range of applications, day in, day out, season after season. This is where Kioti’s EX Series outperforms the competition and offers unbeatable value.

With two engine configurations, 53 hp and turbo-aspirated 58hp, many features give these tractors the edge over the competition, including the powerful hydraulic system flow, 12 x 12 three-range smooth synchro shuttle transmission, 2 sets standard rear remotes, a generous 3 point linkage lift capacity of 1131 kg, standard loader with 4-in-one bucket and standard three-speed auto PTO.

The flat platform operator area has a no-slip mat, standard foot-activated tilt steering column and fully adjustable deluxe suspension seat for all-day comfort. High ground speed, push button 4WD, and power steering give you confidence, traction and excellent manoeuvrability in changing ground conditions.

Whether you compare specs and crunch the numbers yourself, or have a chat with your local dealer, the ultra-versatile EX series adds up to a great choice for a better tractor.

  • Powerful 53 hp/58 hp engine
  • Synchro shuttle transmission
  • 12 x 12 speed transmission
  • 62.4 LPM hydraulic pump flow
  • 1,131 kg 3 PL capacity @ 610 mm
  • 2 x sets rear remote outlets
  • Auto PTO
  • 540 - 750 - 1000 PTO speeds
  • Flat working platform
  • Tilt steering wheel
  • Deluxe suspension seat





Specifications

EX Series

ENGINE

BRAKES

EX5310 4B243DM-C1 | 53hp @2600 rpm

Wet Disc Type

EX5810 4B243DTM-C | 58hp @2600 rpm



2435cc Displacement

OPERATOR ENVIRONMENT

45 Litre Fuel Tank Capacity

Front Work Lights with Indicators/Brake Lights



Step Through Platform



Under Bonnet Muffler

TRANSMISSION

Comfort Seat with Seat Belt

12x12 Synchro Shuttle

Foldable ROPS

Dry Single Clutch



Rear Differential Lock

TRAVEL SPEEDS

4 Wheel Drive

Speed Range 1.5-27.9 km/h



HYDRAULICS & LINKAGE

DIMMENSIONS

Tandem Gear Hydraulic Pump

Overall Length inc 3PL                3317mm

Manual Linkage Control

Overall Height inc ROPS             2550mm

62.4 I/min Total Flow

Overall Width min tread             1675mm

Category 1 Three Point Linkage

Wheelbase                                 1919mm

1,131 kg Max Rear Lift Capacity 610mm Behind Lift

Min Ground Clearance                  405mm

Power Steering

Weight                                        1790kgs

 2x Rear Remotes

POWER TAKE OFF

TYRES

Hydraulic Independent 540 - 750 - 1000 rpm PTO

EX5310



Front Ag 8.6-16



Rear Ag 13.6-26



EX5810
  Front Ag 9.5-16
  Rear Ag 13.6-26

*This information is sourced from overseas therefore it might not apply locally. Please contact your nearest dealer to confirm specifications and other information.
