DK5810 HST

The DK5810 HST is the most valuable compact tractor on the market. With its innovative design, smooth transmission and improved performance to suit a variety of farming needs and property sizes.



Standard Features Include

  • 58 hp Daedong Diesel Engine
  • 3 Range Hydrostatic Transmission
  • 4WD
  • High Ground Speed
  • Power Steering
  • Flat Working Platform
  • Fuel Efficient 4 Cylinder Engine
  • Linked Pedal

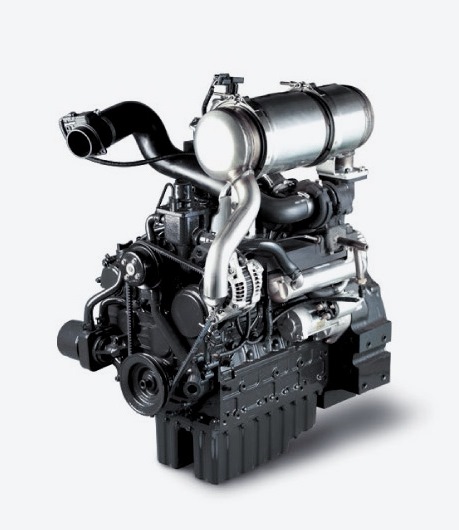

Engine & Transmission

An innovative and eco-friendly engine producing low levels of smoke, noise and vibration which also minimise fatigue to the operator.
Electronic control in operation reduces fuel consumption and running costs.

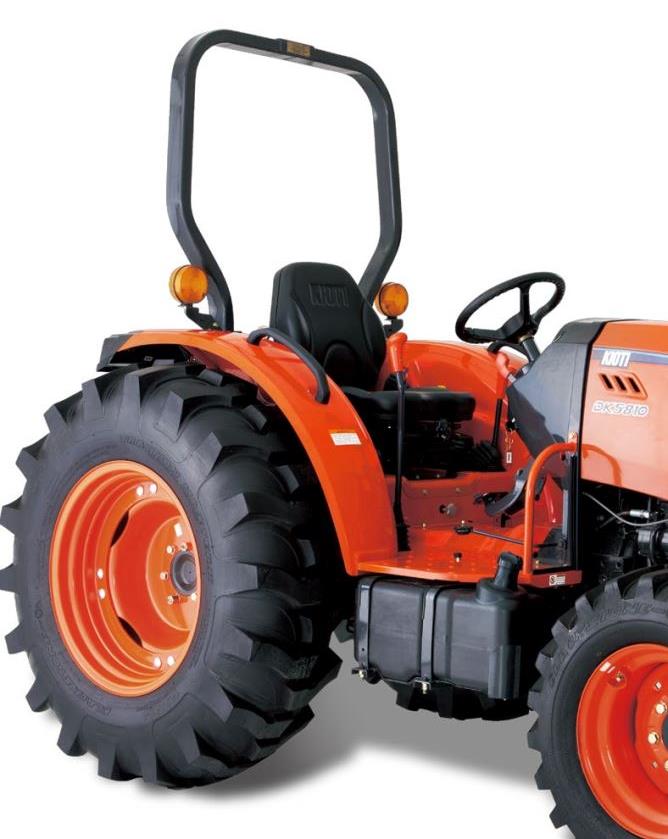

Operator Station

Ergonomically designed for optimal comfort. The illuminated dashboard ensures great visibility while working in bright daylight or at night. The CAN communication from the dash to ECU. Most of the control buttons are located right in front of the driver for easy control and easy excess toolbox behind the seat. Extra comforts include smartphone holder and large cup holder.



Specifications

DK5810 HST
ENGINE BRAKES
Daedong 4B243DTL-A1 Wet Disc Type
Liquid Cooled 4 Cylinder Diesel
2435 cc Displacement OPERATOR ENVIRONMENT
58hp @ 2600 RPM (Max hp) Front Work Lights with Indicators/Brake Lights
45 Litre Fuel Tank Capacity Step Through Platform
  Under Bonnet Muffler
TRANSMISSION Comfort Seat with Seat Belt
3 Range Hydrostatic Transmission Foldable ROPS
Dry Single Clutch
Rear Differential Lock TRAVEL SPEEDS
4 Wheel Drive Speed Range 2.17-27.9 km/h

HYDRAULICS & LINKAGE DIMMENSIONS
Tandem Gear Hydraulic Pump Overall Length inc 3PL                 3157mm
Manual Linkage Control Overall Height inc ROPS             2246mm
55.1 I/min Total Flow Overall Width min tread               1596mm
Category 1 Three Point Linkage Wheelbase                                    1810mm
1,232 kg Max Rear Lift Capacity 600mm Behind Lift Min Ground Clearance                  368mm
Power Steering Weight                                           1605kgs

POWER TAKE OFF TYRES
Hydraulic Independent 540 rpm PTO Industrial / Agricultural
