CK3710 HST
The new generation Kioti compact CK3710 HST with its 37 hp Daedong diesel engine also comes with a hydrostatic transmission and HST pedals. Come and experience the new and powerful 4WD tractor today.
Standard Features Include:
- Twin Pedal HST Transmission
- 4WD, Power Steering
- Hydraulic Remotes Standard
- Flat Working Platform
- Fold Down ROPS Frame
- Link Pedal
- Cruise Control

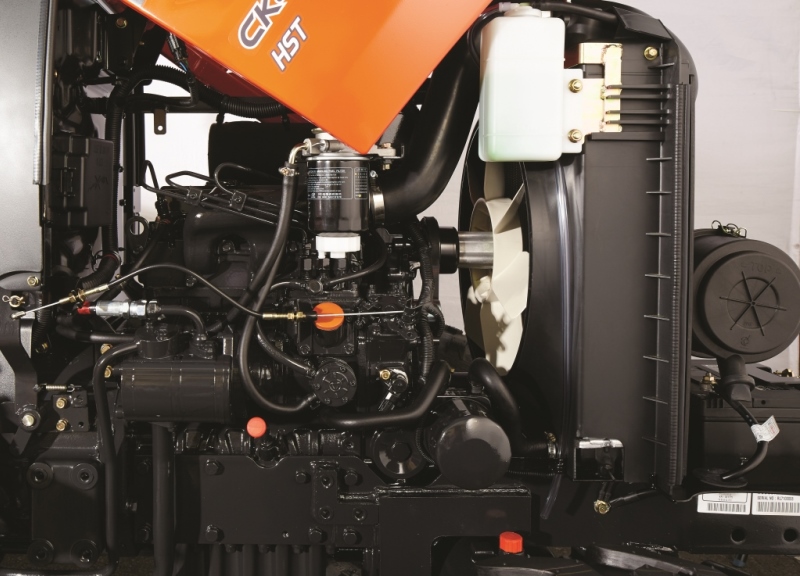

Engine & Transmission
Eco-Friendly Daedong diesel engine is not only fuel-efficient, but it also produces minimal noise, little vibration and meets or exceeds EPA regulations.

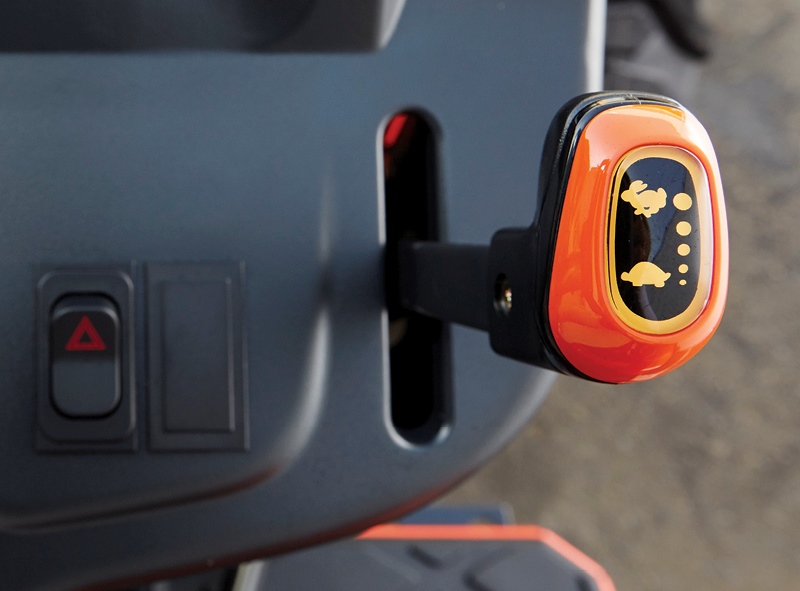

HST models feature performance proven, heavy duty HST drives that deliver power and efficiency. The three range transmission, high, mid, low, and along with a twin pedal operation makes your job easier, smoother and safer.
Operators Station
The illuminated dashboard ensures great visibility while working in bright daylight or at night. Dual HST pedals and joystick are conveniently located for optimum operator comfort. Front-end loader work is also made easier by the use of a single lever joystick. The lever returns to neutral when released and afloat position allows the bucket free flotation over the ground surface.
| CK3710 HST | |
|---|---|
| ENGINE | BRAKES |
| Daedong 3B183LWM-E | Independent Oil Immersed Disc Brakes |
| Liquid Cooled 3 Cylinder Diesel | Cast Iron Transmission and Axle Housing |
| 1829cc Displacement | |
| 37hp @ 2600 RPM (Max hp) | OPERATOR ENVIRONMENT |
| 34 Litre Fuel Tank Capacity | Front Work Lights with Indicators/Brake Lights |
|
Step Through Platform |
|
| TRANSMISSION | Under Bonnet Muffler |
| 3 Range Hydrostatic Drive | Comfort Seat |
| Cruise Control HST models | Tool Box |
| 4 Wheel Drive | |
| Rear Differential Lock | TRAVEL SPEED |
| Infinite Speeds From 0-25 km/h F/R | |
| HYDRAULICS & LINKAGE | |
| Manual Linkage Control | DIMENSIONS |
| 44.4 l/min Total Flow | Overall Length 3070 mm |
| Category 1 Three Point Linkage | Overall Width 1400 mm |
| Draw Bar | Overall Height 2650 mm |
| 4 Hydraulic Remotes (2 Rear, 2 Front w/Joystick) | Wheelbase 1670 mm |
| 740kg Max Rear Lift Capacity 600mm Behind Lift | |
| TYRES | |
| POWER TAKE OFF | Industrial / Turf / Agricultural |
| 540 Rpm Rear PTO Speed |
|
*This information is sourced from overseas therefore it might not apply locally. Please contact your nearest dealer to confirm specifications and other information.
